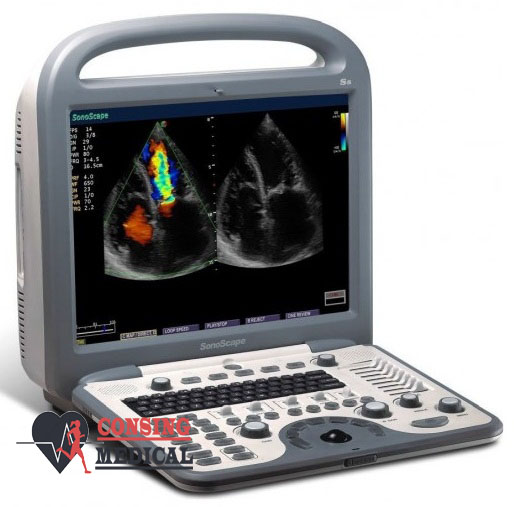

New SonoScape S8 Portable Ultrasound

System Description:
The SonoScape S8 portable ultrasound is an award winning portable ultrasound system with outstanding image quality in all modalities. SonoScape has designed a fully featured, shared service ultrasound system producing image quality one would expect from a much more expensive console system.

Frost & Sullivan “Product Quality Leadership” Award:
“The S8 is versatile in performance,” notes Frost & Sullivan Research Analyst Shriram Shanmugham. “It uses a 15 MHz linear transducer, 512 super high density transducers, and is the only echocardiography system that also offers 4D imaging capability. None of the company’s competitors offers such a combination of 4D and high-end echocardiography technology affording portability.” “The high frame rate and high definition image quality provide users better diagnostic experience than ever”
Application:

Shared Service!
Ob/Gyn
Anesthesia
Urology
Vascular / Vascular Access
MSK
Breast Imaging
Abdominal
Small Parts
Cardiac

Features:

15” LCD Monitor
2 Hot Swap Probe Ports
High Pulse Repetition Frequency [HPRF]
Multi Beam Processing [MBP]
Trapezoidal Imaging
Panoramic
Imaging
Advanced Tissue Harmonic Imaging
M-Tuning [One touch image optimization]
uScan
Multi Plane Adult & Pediatric TEE
Intimae Media Thickness [IMT]
High Q Nosie Filter [HQNF]
B-Mode
M-Mode
Color Doppler
Power Doppler
Spectral Steered Doppler
Real time Triplex: B, Flow & PW Doppler / B, Flow & Color M
ECG
4D
Tissue Doppler Imaging
B-Color
Anatomic M-Mode
DICOM 3.0
2 USB Ports
Video In/Out

Options:

Mobile Trolley
DVD/CD-RW
Printer
Stress Echo

Transducers:

C344, 5-2MHz/R40mm, Abdominal Convex Probe
C362, 5-2MHz/R60mm, Abdominal Convex probe
C542, 7-4MHz/R40mm, Abdominal & Pediatric Probe
C311, 4-2MHz/R15mm, Micro-convex Cardiac Probe
C611, 8-4MHz/R11mm, Micro-convex Pediatric Cardiac Probe
L741, 10-5MHz/46mm, Vascular Small part Linear Probe
L742, 15-5MHz/38mm, Vascular Small part linear probe
L743, 15-5MHz/46mm, Vascular Small part linear probe
L541, 7-4MHz/38mm, Vascular Linear probe
10L1, 12-6MHz/36mm, Vascular Small Parts Probe
10I2, 15-5MHz/25mm, Linear Surgical Probe
6V1, 8-4MHz/R11mm, Endovaginal Probe (135 degree)
6V3, 9-5MHz/R10mm, Endovaginal probe (200 degree)
EC9-5, 9-5MHz/R8mm, micro-convex Endocavity probe (150 degree)
2P1, 4-2MHz, Phased Array Cardiac Probe
5P1, 7-4MHz, Phased Array Pediatric Cardiac Probe
MPTEE, 7-4MHz, Multi-plane Phased Array TEE Probe
MPTEE Mini, 7-4MHz Pediatric Multi-plane Phased Array TEE Probe
VC6-2, 6-2MHz/R40mm, Curved volumetric probe for Live 3D

Biopsy Guides:

C344, C362, L741, L742, L743, 10LI, L541, 6V1, 6V3, EC9-5, 2P1, 7U2

15″ LCD monitor, 2 Hot-swappable Probe ports, Keyboard with programmable keys, HPRF (High Pulse Repetition Frequency), MBP (Multi-beam Processing), Trapezoidal Imaging, Panoramic Imaging, Advanced THI (Tissue Harmonic Imaging), TDI (Tissue Doppler Imaging) ,MicroScan (Noise & Artefact Reduction), Multi Parameter Compound Imaging, M Tuning (One Touch Image Optimization), Steerable M mode, uScan, Bi-Plane Transrectal Imaging, Multi-Plane Adult and Paediatric TEE/TOE, Endocavitary Imaging with Extended Field-of-View, Stress Echo, anatomic M mode, PDF report, Automatic flow volume analysis, IMT, HQNF (High Q Noise Filter), 2 USB ports, Video in/out ports, Li-ion battery.
