Roland DWX-52DC Dental Milling

Original price was: $10,779.00.Current price is: $8,150.00.

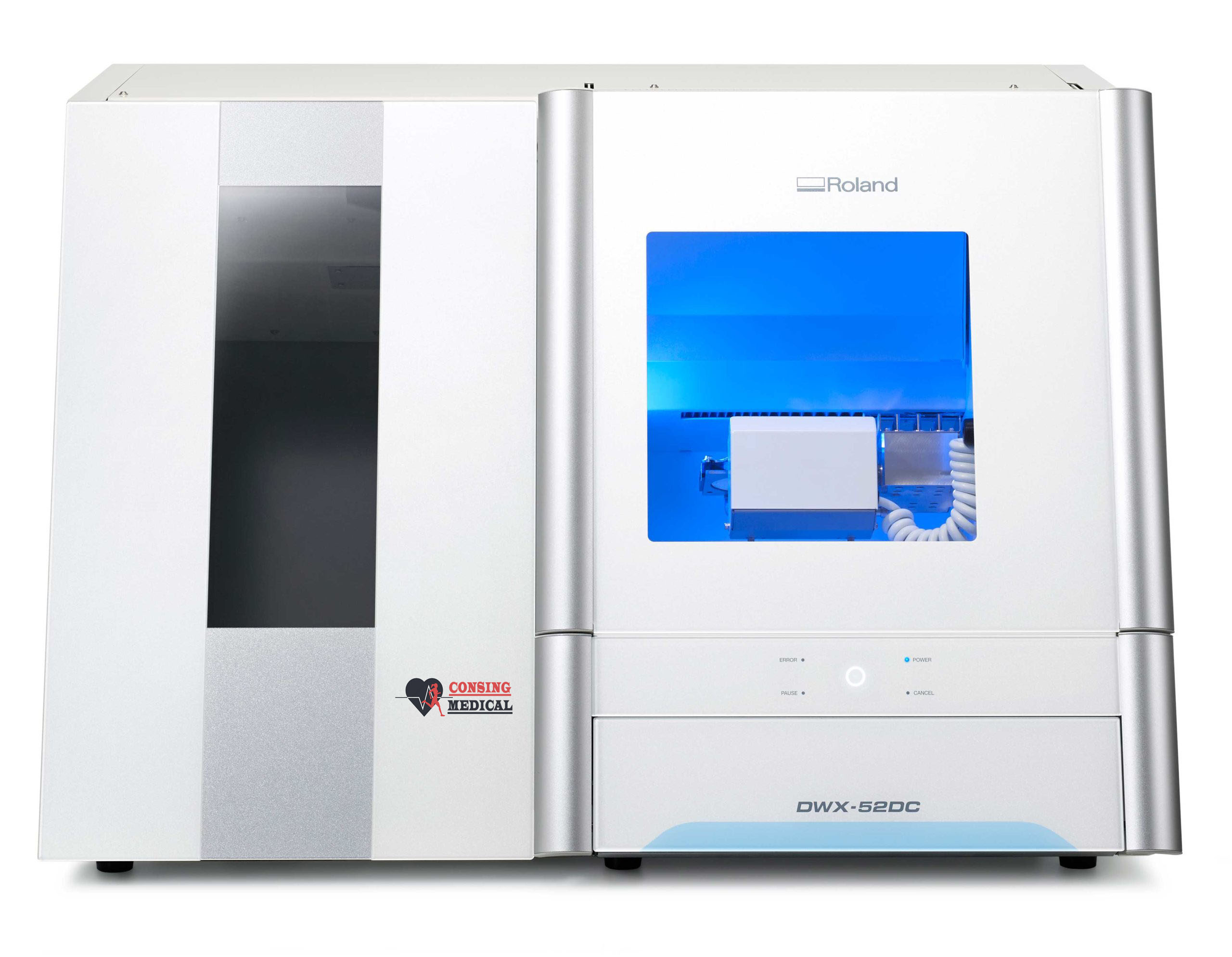

Roland DWX-52DC Dental Milling Unit

The ultimate in ease, material flexibility and unattended production, the DWX-52DC dental milling machine is designed to greatly expand your lab production and profit.

Category: Tag:

Roland DWX-52DC Dental Milling Unit

DWX-52DC

The ultimate in ease, material flexibility and unattended production, the DWX-52DC dental milling machine is designed to greatly expand your lab production and profit. Featuring a 6-slot Automatic Disc Changer, 15-station Automatic Tool Changer and other automated features, it gives users of all skill levels an exceptionally powerful, efficient and affordable dental restoration solution.

Sale – Roland DWX-52DC Dental Milling

| 5-Axis (Control XYZAB simultaneously) | Milling method:Dry mill | Cuttable material:Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum |

The DWX-52DC Dental Mill with Disc Changer is the newest addition to the popular DWX series of 5-Axis Dental Milling Machines. With a combination of automated functions designed to help reduce manual work, production of dental restorations is now even more efficient and reliable. The DWX-52DC’s open architecture means it can be used with the CAD/CAM software that your technicians are already familiar with in order to cut learning time and create the optimum workflow for your production environment. The DWX-52DC provides an efficient digital solution for both dental laboratories seeking to boost production capabilities, as well as labs looking to expand into the digital realm.

Sale – Roland DWX-52DC Dental Milling

DWX-52DC
Cuttable material Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, CoCr sinter metal
Loadable workpiece shape Step section: 98.5 mm (diameter), height 10 mm
Body section: 95 mm (diameter), height max. 35 mm
Pin diameter: 6 mm
Pin diameter: 6 mm
Loadable workpiece weight Up to 850 g
Number of adapters housed 6
Operating speed XYZ axis: 0.24 to 70.9 in./min.(6 to 1,800 mm/min.)
Spindle motor Brushless DC Motor
Spindle speed 6,000 to 30,000 rpm
Rotary axis travel angle A: ±360°
B: ±30°
Number of burs housed 15
Attachable bur Shank diameter: 4 mm
Length: 40 to 55 mm
Compatible compressed air 0.2 MPa
Interface USB
Control command set RML-1, NC code
Power requirements AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A
(overvoltage category II, IEC60664-1)
Power consumption Approx. 200 W
Operating noise During operation: 70 dB (A) or less (when not cutting),
During standby: 45 dB (A) or less
External dimensions Width x Depth x Height: 34.6 x 26.0 x 23.6 in. (880 x 660 x 600 mm)
Weight: 105 kg (231.5 lbs.)
