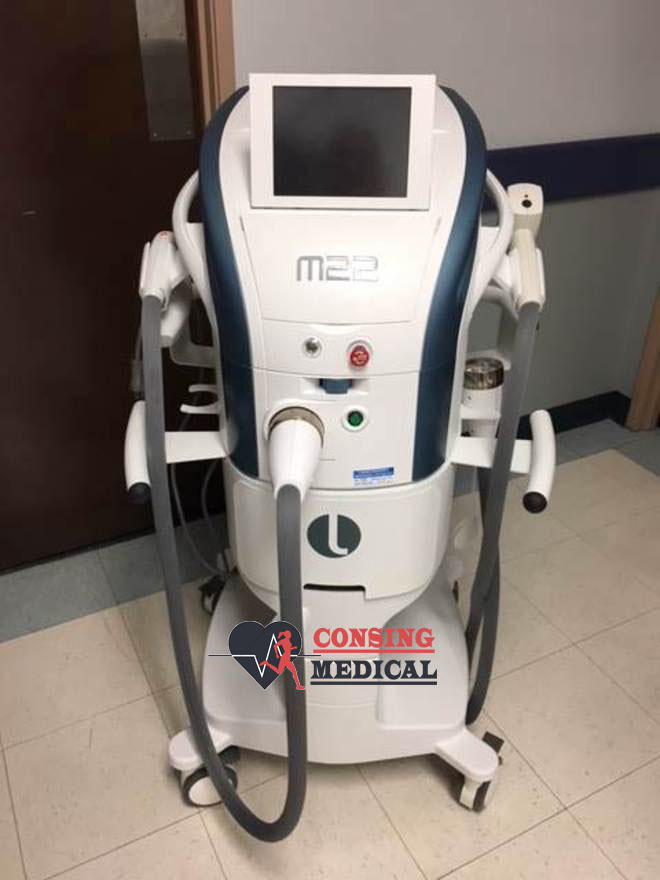

Lumenis M22 IPL and Yag Laser System
Sale – Lumenis M22 IPL and Yag Laser
Lumenis M22 IPL and Yag Laser System grows with your practice
Expands to your treatment needs and adapts to future applications as they emerge.
Universal IPL
– Optimal Pulse Technology (OPT)
– Single handpiece with changeable filters and lightguides
– For IPL skin treatments using photorejuvenation
ResurFX
– The only True fractional non-ablative, with CoolScan™ scanner
– No disposables
– For skin resurfacing
Multi-Spot Nd:YAG
– With Multiple Sequential Pulsing (MSP™)
– 2 sized lightguides, changeable in seconds
– For treatment of leg veins and vascular lesions
Q-Switched Nd:YAG
– Homogenous beam profile for enhanced treatment safety and efficacy
– For skin toning by treatment of pigmented lesions and dark tattoos removal
M22 is designed to grow with your practice. When your business has this system you can offer treatments based on your client’s demands and adapt to future applications as they emerge. With the ability to treat over 30 skin conditions and hair removal the M22 system is all you need, all in one.
The IPL module saves time and space by enabling treatment of a variety of conditions with a single handpiece and multiple filters. In Nd:YAG format, M22 supplements the capabilities of the IPL module to treat vascular lesions, leg veins and facial wrinkles with non-ablative treatment.
The ResurFX module for fractional non-ablative skin-resurfacing can treat with a single pass. Unlike other fractional technologies ResurFX needs only one pass to be effective, which protects your patients’ skin and saves time.
The Universal IPL handpiece is designed with 9 ExpertFilters tailored to the condition being treated and computer-enabled filter recognition for enhanced safety and ease-of use. With the Universal IPL handpiece, change ExpertFilters™ in seconds instead of attaching a whole new handpiece.
The Universal IPL handpiece saves not only treatment time and storage space, but is also extremely cost efficient because there is no need to purchase multiple IPL handpieces. Three SapphireCool™ lightguides, for large and small areas, maximize patient comfort with continuous contact cooling.
Product Specifications | |
---|---|
Universal IPL | |
Spectrum | 515-1200 nm |
ExpertFilters | 515, 560, 590, 615, 640, 695, 755 nm |
Fluence | 10-35 J/cm2 |
Pulse Duration | 4-20 ms |
Pulse Delay | 5-150 ms |
Repetition Rate | Up to 1 Hz |
Spot Size | 35 x 15 mm2; 15 x 8 mm2 |
Cooling | Continuous contact cooling |
ResurFXTM | |
Wavelength | 1565 nm |
Pulse Energy | 10-70 mJ per micro-beam |
Pulse Characteristic | CoolScanTM Scanner |
Pattern Shapes | Line, square, rectangle, circle, donut, hexagon |
Beam Density | Up to 500 micro-beams/cm2 |
Repetition Rate | 0.5-2 Hz |
Spot Size | Up to 18 mm |
Cooling | Continuous contact cooling |
MultiSpotTM Nd YAG | |
Wavelength | 1064 nm |
Fluence | 20-225 J/cm2 |
Pulse Duration | 2-20 ms |
Pulse Delay | 5-150 ms |
Repetition Rate | Up to 1 Hz |
Spot Size | 6 mm, 2×4 mm2 |
Q-Switched Nd YAG | |
Wavelength | 1064 nm |
Fluence | 1.6-14 J/cm2 |
Pulse Duration | 6-8 nsec |
Pulse Characteristic | Top-Hat |
Repetition Rate | 0.5-5.0 Hz |
Spot Size | 2, 2.5, 3.5, 5 and 6 mm |
System specifications | |
Dimensions | [without ResurFX] 44 x 50.5 x 47 cm (17 x 20 x 18.5 inches) |
Dimensions | [with ResurFX] 44 x 50.5 x 61.5 cm (17 X 20 X 24 inches) |
Weight | [without ResurFX] 40 kg / 88 lbs |
Weight | [with ResurFX] 55 kg / 121 lbs |
Electrical requirements | 100 – 240 VAC ±10%, 15A max., 50/60 Hz, single phase, dedicated line |
